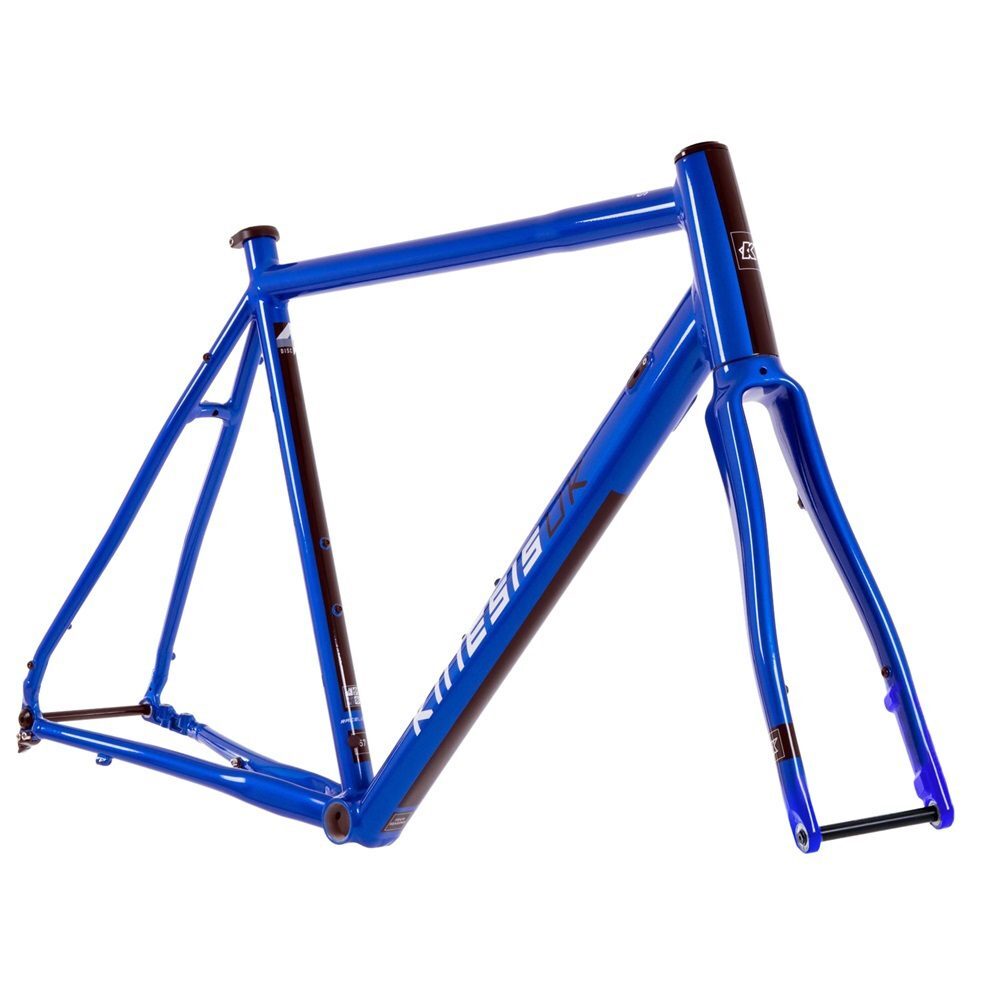

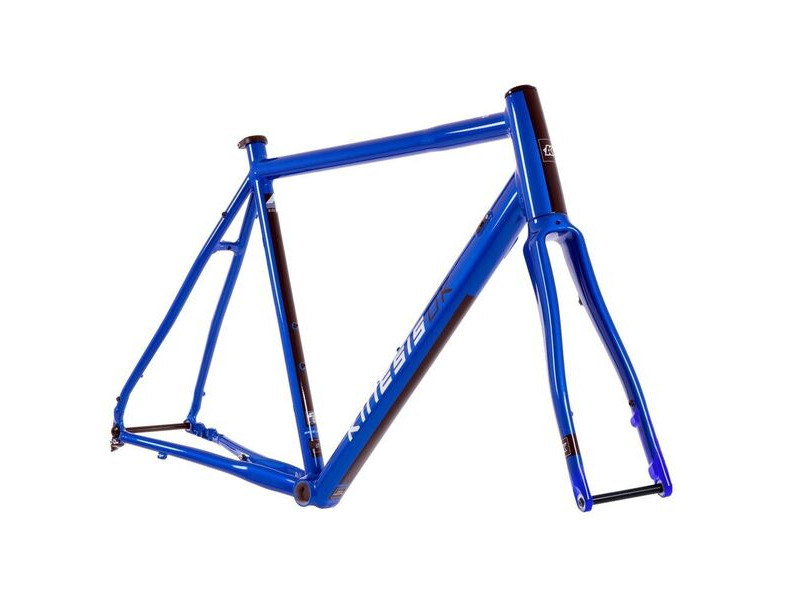

KINESIS UK Frameset 4S Blue

KINESIS UK Frameset 4S Blue 51cm Blue click to zoom image

KINESIS UK Frameset 4S Blue 54cm Blue click to zoom image

KINESIS UK Frameset 4S Blue 55.5cm Blue click to zoom image

KINESIS UK Frameset 4S Blue 57cm Blue click to zoom image

KINESIS UK Frameset 4S Blue 60cm Blue click to zoom image

KINESIS UK Frameset 4S Blue 63cm Blue click to zoom image

£850.00

Offer £500.00

In Store Now

Options	48cm Blue (Item# 5055308119973 186827 K-RL-4S-BLUE-48) Out of Stock 51cm Blue (Item# 5055308119980 186834 K-RL-4S-BLUE-51) Out of Stock 54cm Blue (Item# 5055308119997 186841 K-RL-4S-BLUE-54) Out of Stock 55.5cm Blue (Item# 5055308120009 186858 K-RL-4S-BLUE-55.5) In stock, ready to dispatch 57cm Blue (Item# 5055308120016 186865 K-RL-4S-BLUE-57) Out of Stock 60cm Blue (Item# 5055308120023 186872 K-RL-4S-BLUE-60) Out of Stock 63cm Blue (Item# 5055308120030 186889 K-RL-4S-BLUE-63) Out of Stock
Description	- ? Kinesium Aluminium - ? Carbon fork. - ? Clearance for up to 30c tyres - ? Two bottle cage mounts - ? Mudguard and rack mounts The Kinesis 4S is the natural evolution of our very first Winter training frames, however the Kinesis 4S should not be consigned to Winter riding only. We have put everything we have learned during the last 17 years of geometry, and alloy frame design and manufacture into the Kinesis 4S . Whilst other manufacturers focus has been on carbon, we believe that by putting the same development into alloy tubing, we have created a frame that rivals carbon in many ways, and hands down beats it on price.Damian Mason of Kinesis UK said 'Kinesis are the only frame manufacturer to use Super Plastic Forming (SPF) on their alloy frames. Most manufacturers use Hydroformed tubes, but with SPF we can create lighter tubes and more intricate shapes that will build into a lighter and stiffer frameset.'We have combined our SPF Kinesium aluminium frame with our renowned Tracer Disc Thru Axle full carbon monocoque fork. The Tracer Disc's square crown provides the perfect space for mounting our Kinesis Fend Off full length mudguards. The Tracer Disc has great tyre clearance, internal routing, mudguard compatibility, discreet Shimano flat mount fitting, all in a lightweight package.As with our premium titanium Kinesis GTD frameset, we have partnered with GW engineering and we are supplying the Kinesis 4S with their patented 'Switch Lever' hollow Thru Axles with a removeable lever.The Kinesis 4S uses adaptable cable ports which allow you to build your frame with exactly the right cable routing for whether you are running Di2 or mechanical gearing with either a 1x or 2x set up.The frame has twin bottle mounts on all sizes along with mudguard and rack mounts. Using our renowned Racelight geometry, the kinesis 4S offers a true race geometry but with the ability to fit full length mudguards and a pannier rack. The Kinesis 4S is for the rider looking for a Winter bike that will handle like their Summer race bike, or a Winter bike that they can race through the Summer. A true four seasons bike. - ? Super Plastic Formed Kinesium Aluminium - ? Tracer Disc Thru Axle carbon monocoque fork - ? 142x12mm Thru Axle rear spacing - ? 100x12mm Thru Axle front spacing - ? GW 'Switch Lever' axles front and rear - ? Clearance for up to 30c tyres - ? Clearance for up to 28c tyres with guards - ? Di2 / 1x / 2x mechanical compatible - ? Two bottle cage mounts - ? Mudguard and rack mounts - ? 68mm threaded BB - ? 27.2mm seat post required - ? Kinesis designed tapered headset with ACB bearings - ? Colours: Shocking Pink or Royal Blue - ? Sizes: 48 / 51 / 54 / 55.5 / 57 / 60 / 63 - ? Warranty: 3 years - ? Frame supplied with fork, headset, seat clamp, front & rear through axle, frame ports and cable guides. - ? Weight: 1550g (55.5cm frame)

Options

48cm Blue (Item# 5055308119973 186827 K-RL-4S-BLUE-48) Out of Stock
51cm Blue (Item# 5055308119980 186834 K-RL-4S-BLUE-51) Out of Stock
54cm Blue (Item# 5055308119997 186841 K-RL-4S-BLUE-54) Out of Stock
55.5cm Blue (Item# 5055308120009 186858 K-RL-4S-BLUE-55.5) In stock, ready to dispatch
57cm Blue (Item# 5055308120016 186865 K-RL-4S-BLUE-57) Out of Stock
60cm Blue (Item# 5055308120023 186872 K-RL-4S-BLUE-60) Out of Stock
63cm Blue (Item# 5055308120030 186889 K-RL-4S-BLUE-63) Out of Stock

Description

- ? Kinesium Aluminium
- ? Carbon fork.
- ? Clearance for up to 30c tyres
- ? Two bottle cage mounts
- ? Mudguard and rack mounts

The Kinesis 4S is the natural evolution of our very first Winter training frames, however the Kinesis 4S should not be consigned to Winter riding only. We have put everything we have learned during the last 17 years of geometry, and alloy frame design and manufacture into the Kinesis 4S . Whilst other manufacturers focus has been on carbon, we believe that by putting the same development into alloy tubing, we have created a frame that rivals carbon in many ways, and hands down beats it on price.Damian Mason of Kinesis UK said 'Kinesis are the only frame manufacturer to use Super Plastic Forming (SPF) on their alloy frames. Most manufacturers use Hydroformed tubes, but with SPF we can create lighter tubes and more intricate shapes that will build into a lighter and stiffer frameset.'We have combined our SPF Kinesium aluminium frame with our renowned Tracer Disc Thru Axle full carbon monocoque fork. The Tracer Disc's square crown provides the perfect space for mounting our Kinesis Fend Off full length mudguards. The Tracer Disc has great tyre clearance, internal routing, mudguard compatibility, discreet Shimano flat mount fitting, all in a lightweight package.As with our premium titanium Kinesis GTD frameset, we have partnered with GW engineering and we are supplying the Kinesis 4S with their patented 'Switch Lever' hollow Thru Axles with a removeable lever.The Kinesis 4S uses adaptable cable ports which allow you to build your frame with exactly the right cable routing for whether you are running Di2 or mechanical gearing with either a 1x or 2x set up.The frame has twin bottle mounts on all sizes along with mudguard and rack mounts.

Using our renowned Racelight geometry, the kinesis 4S offers a true race geometry but with the ability to fit full length mudguards and a pannier rack.

The Kinesis 4S is for the rider looking for a Winter bike that will handle like their Summer race bike, or a Winter bike that they can race through the Summer.

A true four seasons bike.

- ? Super Plastic Formed Kinesium Aluminium
- ? Tracer Disc Thru Axle carbon monocoque fork
- ? 142x12mm Thru Axle rear spacing
- ? 100x12mm Thru Axle front spacing
- ? GW 'Switch Lever' axles front and rear
- ? Clearance for up to 30c tyres
- ? Clearance for up to 28c tyres with guards
- ? Di2 / 1x / 2x mechanical compatible
- ? Two bottle cage mounts
- ? Mudguard and rack mounts
- ? 68mm threaded BB
- ? 27.2mm seat post required
- ? Kinesis designed tapered headset with ACB bearings
- ? Colours: Shocking Pink or Royal Blue
- ? Sizes: 48 / 51 / 54 / 55.5 / 57 / 60 / 63
- ? Warranty: 3 years
- ? Frame supplied with fork, headset, seat clamp, front & rear through axle, frame ports and cable guides.
- ? Weight: 1550g (55.5cm frame)

As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
